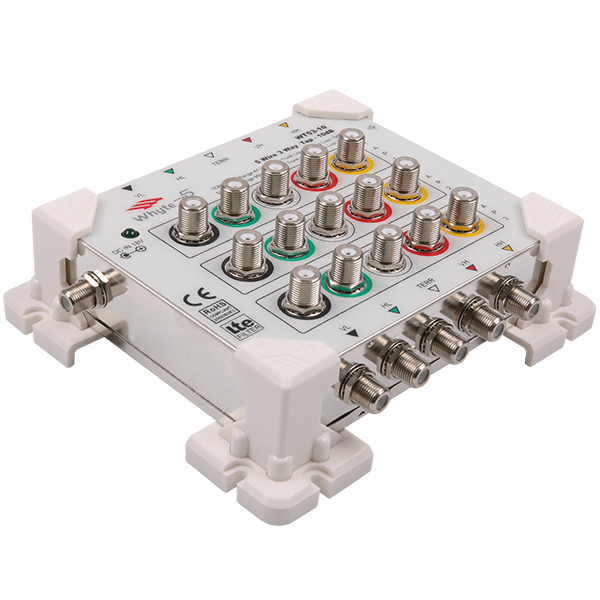

Whyte Series 5 Taps & Splitters are a range of 5 wire passive devices that distribute SAT and Terrestrial Signals. The range includes 1 way, 2 way and 3 way Taps with either a 10dB or 20dB tap off and a 2 way Splitter. For ease of installation, each Tap comes complete with a set of high quality colour coded 600mm F-type leads which enables the Multiswitches to be positioned either side of the Tap and to be orientated vertically or horizontally depending on available space.
-
Tap outputs on top of unit for easy access
-
Auxiliary 18V Input injects power to HL & HH trunk cables
-
LED power indicator
-
Whyte Taps, Splitters and Multiswitches can be used to configure
Integrated Reception Systems (IRS) to suit your application -
Inbuilt LTE filter
-
Colour coded inputs and outputs
-
Comes with high quality colour coded leads included
-
4 Years Warranty
Specifications
| Frequency: | SAT: 950-2150MHz TERR: 87-790MHz |
| INPUTS (F-Type Connector): | 4 SAT + 1 TERR |
| OUTPUTS (F-Type Connector): | 4× 1 TERR 4× 4 SAT |
| DC Input (Injection of DC applied to): | SAT: HL + HH Trunk/Tap |
| DC Pass Trunk To Tap: | SAT: HH + HL TERR: NO |
| DC Pass Trunk to Trunk: | SAT: YES TERR: NO |
| Trunk Through Loss: | SAT: 3dB±1 TERR: 2dB±1 |
| Tap Loss: | SAT: 10dB TERR: 10dB |
| Fixed Slope Taps: | SAT: 4dB |
| Max Current Pass (Trunk/Trunk Trunk/Tap): | 2A |
| Dimensions (mm): | 156 x 136 x 43 |
| Weight: | 462g |
