- LTE Protected

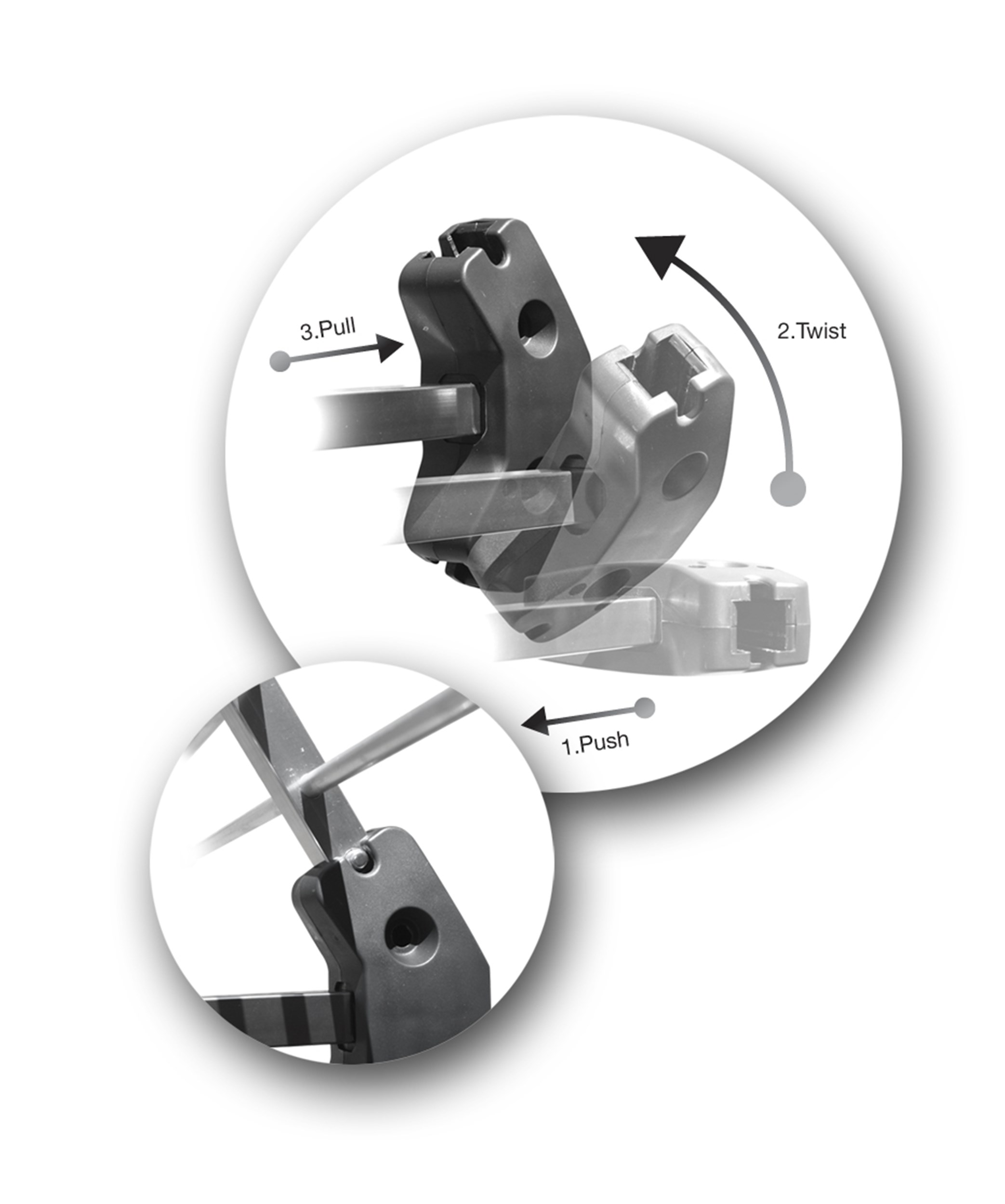

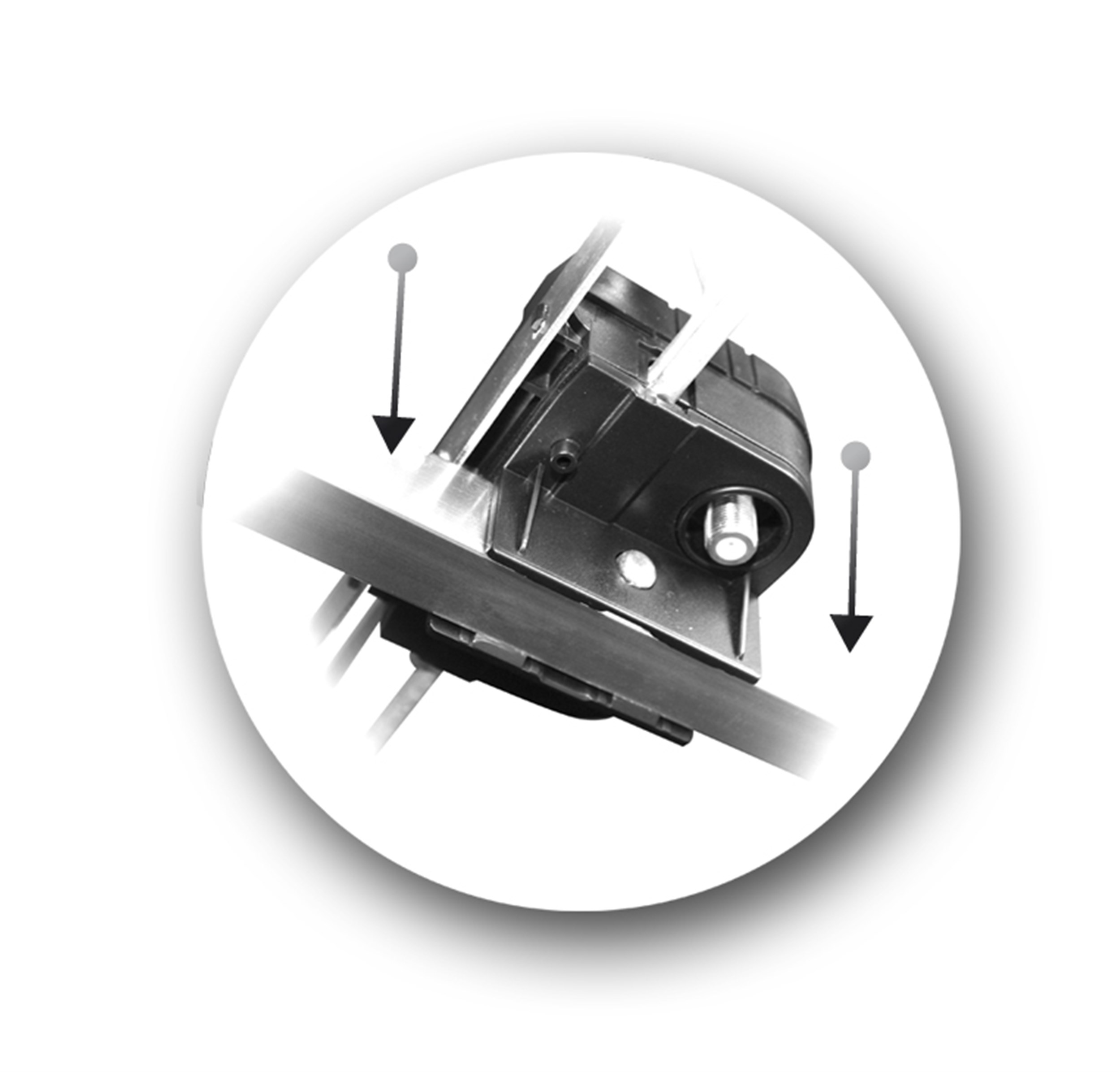

- Tool free assembly – Quick lock dipole and reflector
- Strong, rugged construction
- F-Connector dipole housing
- Excellent F/B ratio and performance across the whole UHF band
Specifications
ORDER INFORMATION | |
---|---|
EAN Number | 5702661081736 |
CHARACTERISTICS | |

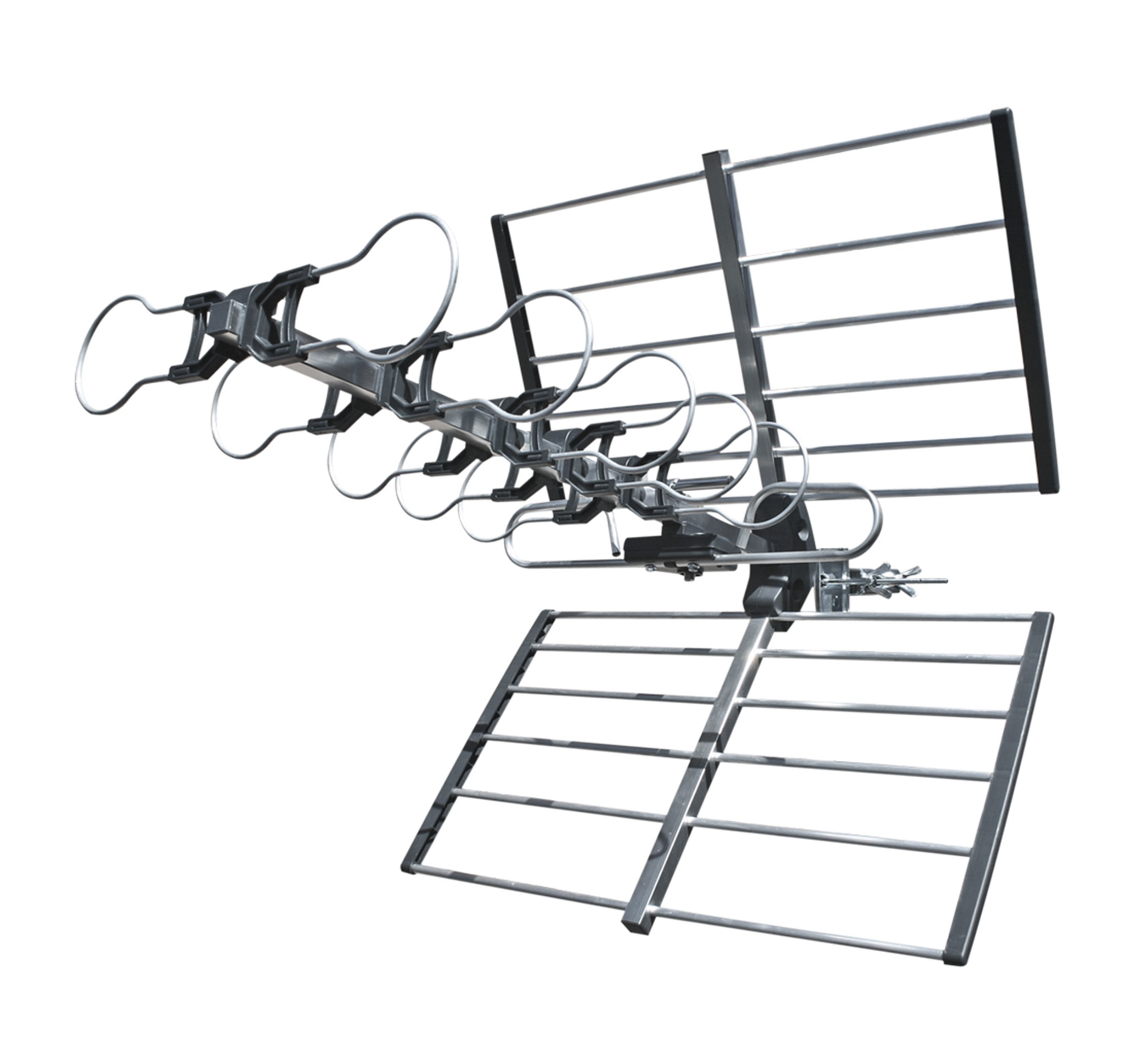

Type | HG 5 T |
FREQUENCY | |
Band | B IV/V UHF |
Channels | 21…60 |
LTE protection | @ 800Mhz |
Frequency range UHF | 470…790 MHz |
GAIN | |
Gain | 10…12 dBi |
LOSS | |
Rejection @ 821 MHz (LTE D6) | <2.14dBi dB |
ELECTRICAL | |
Front to back ratio – horisontal | >20…26 dB |
Impedance | 75 Ω |
CONNECTORS | |
Connector Type | F-female |
MECHANICAL | |
Main material | Aluminium |
Beamwidth horisontal | 32 ° |
Beamwidth vertical | 35 ° |
Bracketry | Rear Mount |
Elements | 32 |
Total Weight | 1,400 kg |
Product Length | 720 mm |
Net Weight | 1,400 kg |
Packing QTY | 1 |
Product Width | 610 mm |
Windload | 60 N |
Individual brown box | Yes |
