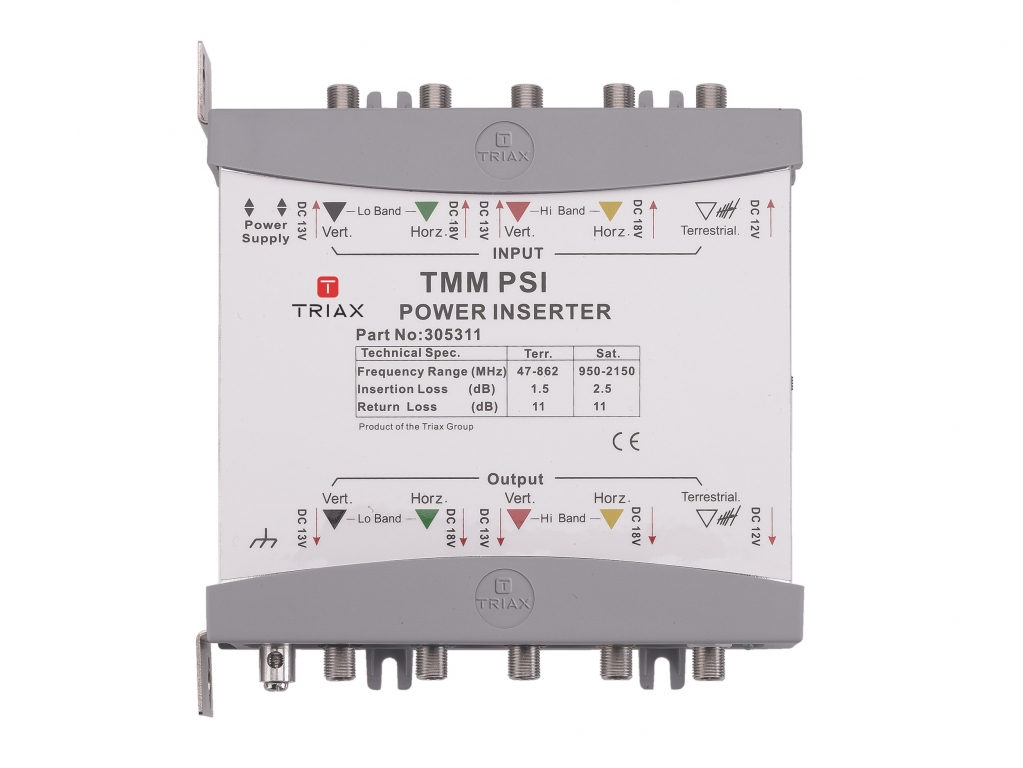

TRIAX TMM PSUs are easy-to-install power supplies/power inserters to be used with the TMM series products.
Specifications
ORDER INFORMATION | |
---|---|
EAN Number | 5702663053113 |
CHARACTERISTICS | |
LNB power supply max. | 13V – 18V /500 V/DC |
FREQUENCY | |
Frequency range | 47-2150 MHz |
Frequency range SAT | 47-2150 MHz |
LOSS | |
Insertion loss – SAT | 2.5 dB |
Insertion loss – TER | 1.5 dB |
ISOLATION | |
Isolation out-out SAT | 35 dB |
Isolation out-out TER | 35 dB |
RETURN LOSS | |
Return loss SAT outputs | 11.0 dB |
Return loss TER outputs | 11.0 dB |
ELECTRICAL | |
Impedance | 75 Ω |
OPERATIONAL | |
DC Operating voltage | 18 (3.5 jack) VDC |
PSU output DC voltage | 12 VDC |
PSU output max. DC current | 1500 mA |
Temperature – operating | 0 – 55 °C |
CONNECTORS | |
Colour coding of IF and TER inputs | Yes |
Connector Type | F-female |
Number of trunk outputs | 4 SAT, 1 TERR. |
MECHANICAL | |
Product Depth | 45 mm |
Packaging Depth | 0,210 m |
Packaging Height | 0,040 m |
Total Weight | 0,658 kg |
Packaging Width | 0,180 m |
Net Weight | 0,658 kg |
Remarks | Power supply unit integrated 3 x 14 / 2 x 18 output voltage |
Packaging Volume | 0,002 m3 |
Product Width | 185 mm |
Product Height | 200 mm |
