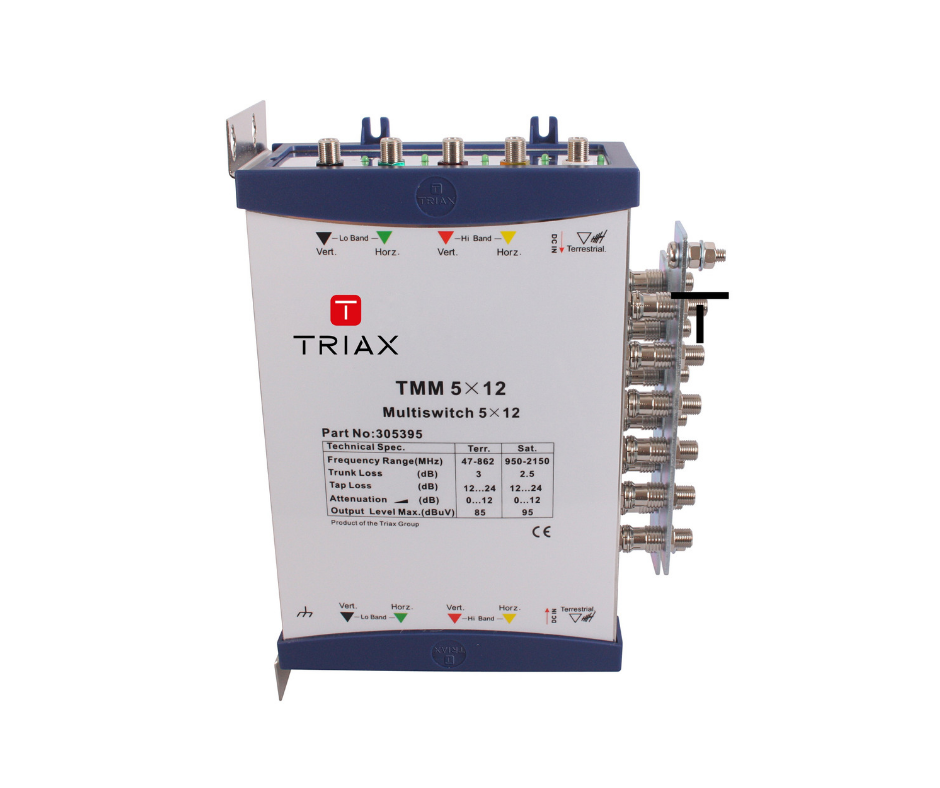

Triax TMM 5×12 Cascade Multiswitch+B Bars 305395

£310.00 inc VAT

Triax TMM 5×12 Cascade Multiswitch+B Bars 305395

Available on back-order

— OR —

  • Description
  • Additional information
  • Shipping & Delivery
  • Product Datasheet
Description

Cascade Multiswitch

Fully modular and cascadable, the TMM 5 input series can be used for systems with 1 or 2 satellite positions plus terrestrial.

  • 4 satellite IF and 1 terrestrial TV inputs and 12 subscriber outputs
  • 4 satellite IF and 1 terrestrial with adjustable level control
  • Cable loss compensation with built-in amplification
  • Colour coded output connections
  • LED power indication on each Trunk line
  • Supplied with output earth bond bars



Specifications

ORDER INFORMATION
EAN Number 5702663053953
CHARACTERISTICS
Max. input level – SAT (IMD3 – 35dB) 119.0 dBµV
Max. input level – TER (IMD3 – 60dB) 109.0 dBµV
Max. output level SAT @ -35 dB IMD3 95.0 dBµV
Max. output level TER @ -60dB IMD3 85.0 dBµV
Switch commands 13V/18V – 13V-22 kHz – 18V-22 kHz
Input polarity gain control SAT 4 x 12.0 dB
Input polarity gain control TER 1 x 12.0 dB
FREQUENCY
Frequency range SAT 950-2150 MHz
Frequency range TER 47-862 MHz
GAIN
Noise figure SAT < 8.0 dB
LOSS
Tap loss SAT 12.0 dB
Tap loss TER 12.0 dB
Through loss – Trunk SAT 2.5 dB
Through loss – Trunk TER 3.0 dB
ISOLATION
Isolation cross polarisation H/V 28.0 dB
Isolation out-out SAT 30.0 dB
Isolation out-out TER 30.0 dB
Isolation SAT to TER 30.0 dB
Isolation TER to SAT 30.0 dB
RETURN LOSS
Return loss SAT inputs 12.0 dB
Return loss SAT outputs 12.0 dB
Return loss switch out – SAT 10.0 dB
Return loss switch out – TER 10.0 dB
Return loss TER inputs 12.0 dB
Return loss TER outputs 12.0 dB
OPERATIONAL
Control LEDs On Input Ports
DC Operating voltage 18.0 VDC
Max. current to each output (supplied by set top box) < 250.0 mA
DC Current consumption 105 Typ From Trunk Line mA
Temperature – operating 0 – 50 °C
CONNECTORS
Colour coding of IF and TER inputs Yes
Connector Type F-female
Number of trunk inputs 4 SAT, 1 TER
Number of trunk outputs 4 SAT, 1 TER
Subscriber outputs 12
MECHANICAL
Product Depth 80 mm
Total Weight 1,780 kg
Net Weight 1,530 kg
Tara Weight 0,250 kg
Product Width 215 mm
Product Height 290 mm
Additional information
Weight 1.7800 kg
Dimensions 80.0000 × 215.0000 × 290.0000 mm
Shipping & Delivery

We endeavour to dispatch orders received by 3.00pm on the same day. Please be aware that no orders are processed on weekends and bank holidays.

We will ship your items via 24-hour courier or 1st class Royal Mail service depending on the weight and value of your order which means that you should receive the items the next day.

  • Items under 2kg will be shipped via Royal Mail 1st class post.
  • Items weighing between 5kg to 20kg will incur a £10 delivery charge
  • Items over 20kg will be charged at £1 per kg.



However, as an enticing bonus we offer shipping free of charge if total order value exceeds £250 (before VAT).

On the other hand, there is a £10 surcharge for customers who require products shipped to the Highlands or Islands.

Delivery charges vary outside of the UK.

Product Datasheet
Specsheet
SKU: TRIMUL60D Categories: Cascadable, Multiswitches, Satellite
